Grohe V&B Wall-hung toilet package

Everything you need to get a wall-hung toilet.
The built-in cisterns from the quality supplier Grohe. Here it comes with a white Skate Air control plate with double flushing.
The control panel can be easily changed to a different color at a later time.

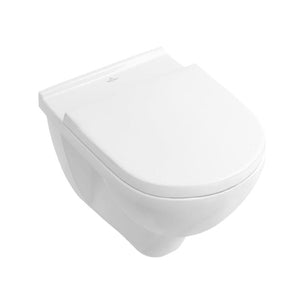

Wall-hung toilet from Villeroy & Boch in white alpine porcelain. For this toilet, the bolts on the wall cistern must be set at c/c 180 mm.
Toilet seat in hard plastic with soft-close and quick fastening.

Complete toilet package consisting of:

6023177 Villeroy & Boch O.Novo DF wall mounted toilet with open flush rim and soft-close toilet seat
6192494 Grohe Rapid SL Built-in cistern with pressure plate

Villeroy & Boch O. New Direct Flush veggtoalett og seven

Standard wall bowl - 56 cm depth

Wall-hung toilet package solution with Villeroy & Boch O.novo Direct Flush wall bowl and toilet seat in white hard plastic with Soft-Close and Quick-Release.

AquaReduct - environmentally friendly water-saving technology, the wall bowl requires only 3 - 4.5 liters of flushing volume

Direct Flush - rimless technology without a flush rim, less space for dirt and bacteria and easier cleaning

Sanitary porcelain - fired at 1200 °C and meets the highest standards for tightness, durability and hygiene

Soft-Close - child-friendly seat that closes silently and softly

Quick-Release - attachment that allows the toilet seat to be easily taken off/on for easier cleaning

Characteristics

Material: Porcelain
Color: White
Toilet seat: Hard plastic with SC / QR
Bolt stand: 18 cm
Direct Flush - rimless
Mål: B360 x D560 x H350 mm
Vekt: 18 kg

Grohe Rapid SL Innbyggingssisterne

Du kan enkelt montere ditt veggmonterte toalett med GROHE Rapid SL 3-in-1 installasjonssett for veggmonterte toaletter. Det tåler mye og er enkelt å montere. Stålrammen er sertifisert for å tåle belastning på over 400 kg for ultimat stabilitet, og den kan monteres foran en solid vegg eller inne i lettvegger på et blunk takket være GROHE QuickFix-systemet, som gjør at du ikke trenger å bruke verktøy for å koble til slange, inspeksjonsåpning og vanntilførsel. GROHE EcoJoy dobbeltspylesystemet er bedre for miljøet og reduserer vannforbruket med inntil 50 %. Støyoverføring til bygningen holdes til et minimum takket være GROHE Whisper-teknologien, som er utformet med støydempende fester og separate rør. Settet leveres komplett med veggfester.

Egenskaper

Boltavstand 180/230 mm
White operating plate included
Self-supporting powder-coated steel frame
Condensation-free
Water connection from left, right or rear
Adjustable double flush between 3-9 litres
Quiet filling, below 20 dB
For drains in the wall or floor

Supplied with

2 WC bolts
solid materials
Drain bend DN 90 mm
Reduction Ø 90/110 mm
Corner valve DN 15
Wall bracket for mounting on the wall

Dokumenter for nedlastning

FDV 6192494

Produktdatablad 6023177
