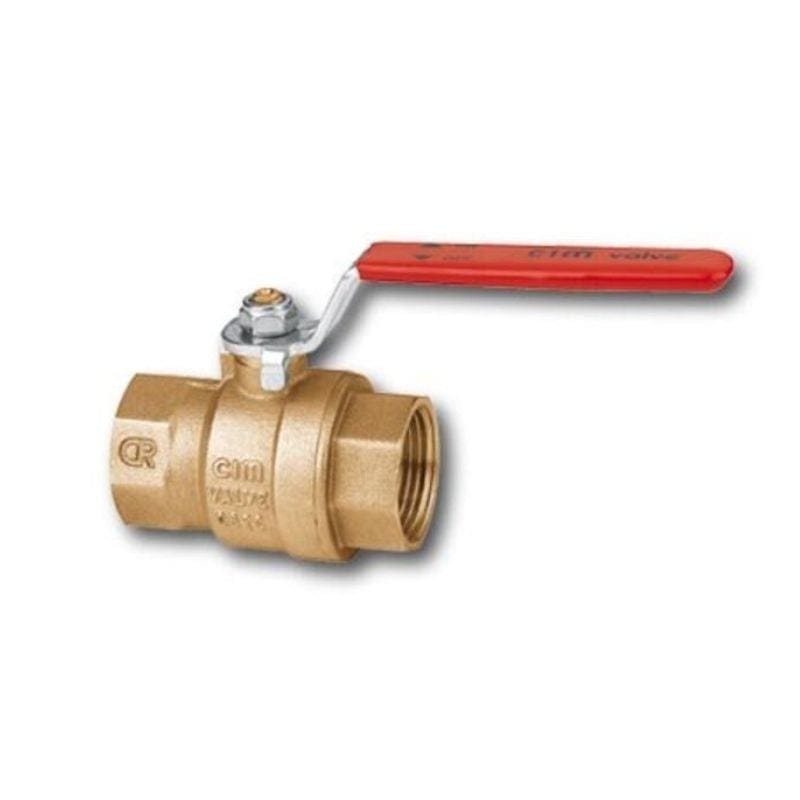

CIM 17 Kuleventil med Fulltløp

CIM 17 Ball valve with full stroke

It can be used in a wide variety of areas: heating, cooling, water, pneumatic systems, oil, gasoline, saturated steam and generally with any non-aggressive medium. It is produced in a brass alloy according to standard EN 12165-CW602N-M.

Technical data

• Connection 1: Internal thread, gas cylindrical (BSPP)
• Connection 2: Internal thread, gas cylindrical (BSPP)
• Nominell diameter tilkobling 1: 3/8" (10) / 1/4" (8) / 1/2" (15) / 3/4" (20) / 1" (25) / 1 1/4" (32) / 1 1/2" (40) / 2" (50)
• Nominell diameter tilkobling 2: 3/8" (10) / 1/4" (8) / 1/2" (15) / 3/4" (20) / 1" (25) / 1 1/4" (32) / 1 1/2" (40) / 2" (50)
• Pressure class: PN 32
• Operation: Handle
• Ball seal material: PTFE
• Material quality: Brass-dezincification-free
• Medium temperature (continuous): -20-150 °C
• Continuous opening: Yes
• Fat-free: No
• Handle length: 65 / 90 / 110 / 150 mm
• Length of connection 1: 11.5 / 12.5 / 14 / 14.5 / 17 / 17.5 / 18 / 20 mm
• Length of connection 2: 11.5 / 12.5 / 14 / 14.5 / 17 / 17.5 / 18 / 20 mm
• Material, ball: Brass
• Spindle material: Brass
• Overall length, connection 1: 11.5 / 12.5 / 14 / 14.5 / 17 / 17.5 / 18 / 20 mm
• Overall length, connection 2: 11.5 / 12.5 / 14 / 14.5 /17 / 17.5 / 18 / 20 mm
• Material primary spindle seal: NBR (Nitrile rubber)
• Material secondary spindle seal: NBR (Nitrile rubber)
• Maximum pressure difference at 20 °C: 32 bar
• With drain valve: No
• With the possibility of bottling: No
• With coupling connection 1: No
• With coupling connection 2: No
• Medically pure: No
• Model / design: Right
• Fireproof: No
• FM Quality Mark: No
• House construction: 2-part
• LPCB Quality Mark: No
• UL quality mark: No
• ULC quality mark: No
• KIWA certified: No
• With check valve: No
• With filter: No
• With insulation shell: No
• With thermometer pocket: No
• Type approved according to BBR/EKS: No
• VdS quality mark: No
• Housing, surface protection: Without
• Surface protection on ball: Chrome-plated
